Bucket

Conveyor

enquire now

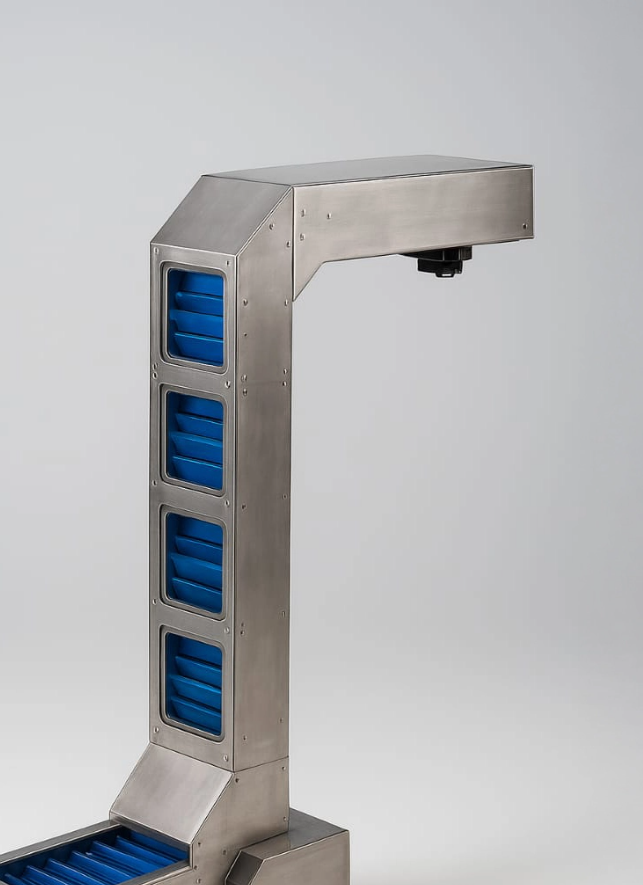

A Bucket Conveyor is a mechanical system for vertical or inclined transport of bulk materials. Buckets attached to a belt or chain operate in a continuous loop to carry grains, powders, pellets, or other flowable materials between process stages or elevations. The system can be enclosed for dust control and environmental protection.

APPLICATION

 Moving materials from ground level to elevated points in a compact space — ideal for powders (flour, sugar), nuts, snacks, and frozen foods.

Boxes Handling in Warehouses
Boxes Handling in Warehouses
Capping Bottles
Capping Bottles
Handling Food Grains
Handling Food Grains
Handling Personal Care Items
Handling Personal Care Items
Handling Sheet Metal Parts
Handling Sheet Metal Parts
Handling Vaccine Bottles
Handling Vaccine Bottles
Moving Blister Packs
Moving Blister Packs
Moving Bottles
Moving Bottles
Moving Nuts and Snacks
Moving Nuts and Snacks
Moving Tablets Capsules
Moving Tablets Capsules
Transporting Biscuits
Transporting Biscuits
Transporting Trays
Transporting Trays

SPECIFICATIONS

  • Length – Customized
  • Width – 300–600 mm
  • Height – 3 – 10 m
  • MOC – SS 304 / MS
  • Surface Finish – SS Matt / Bead Blast or MS Painting & Powder Coating
  • Speed – 5–15 m / min
  • Bucket Material – HDPE / Food-grade / SS
  • Bucket Volume – 300 ml to 10 L
  • Bucket Pitch – 152–250 mm
  • Hopper – Customized with Vibrator Feeder
  • Motor Position – Right / Left
  • Voltage – 220 V / 415 V
  • Drive Type – Direct / Chain / Belt
  • Direction – Single (Vertical Lifting)
  • Resting – Levelling Pads / Wheel

FEATURES

• Vertical lifting mechanism
• Customizable height

• High-strength buckets

• Dust-tight enclosure

• Vibrator feeder hopper

• VFD control

BENEFITS

  • Moves bulk materials vertically in a small footprint
  • Saves floor space
  • Reduces material loss
  • Protects operators and environment
  • Optimized for different capacities and flow properties
