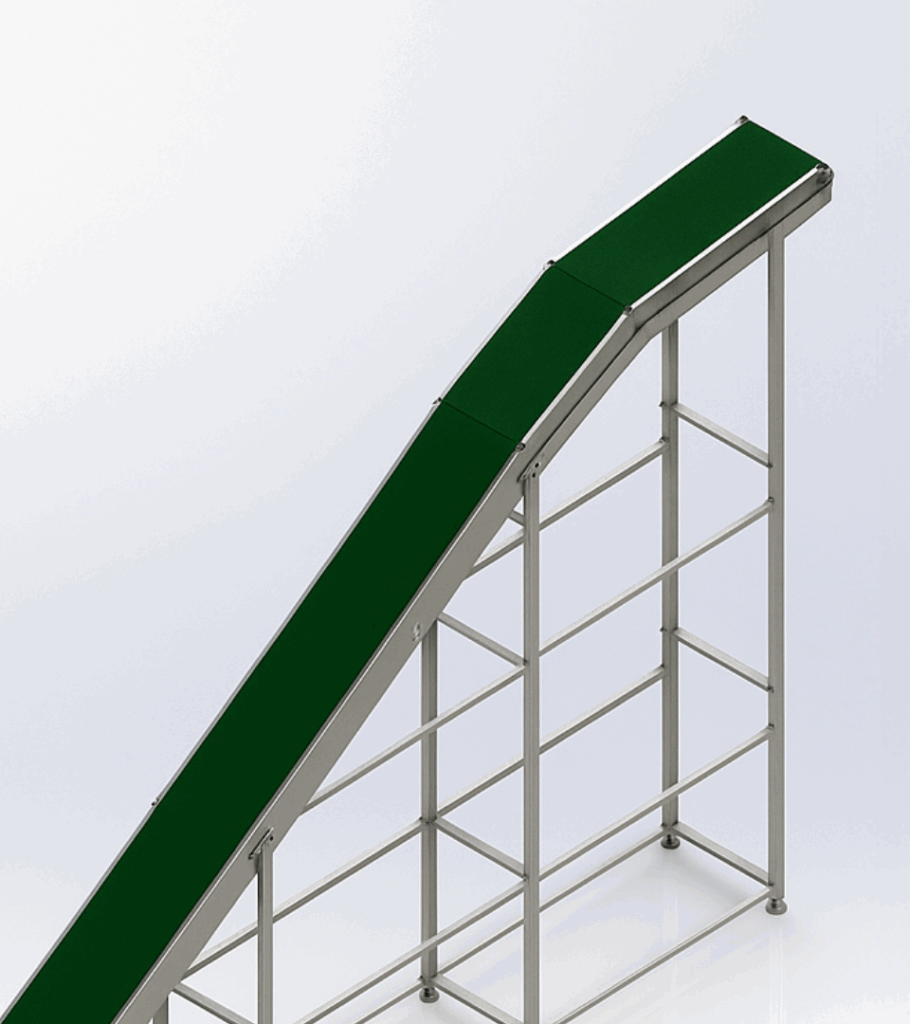

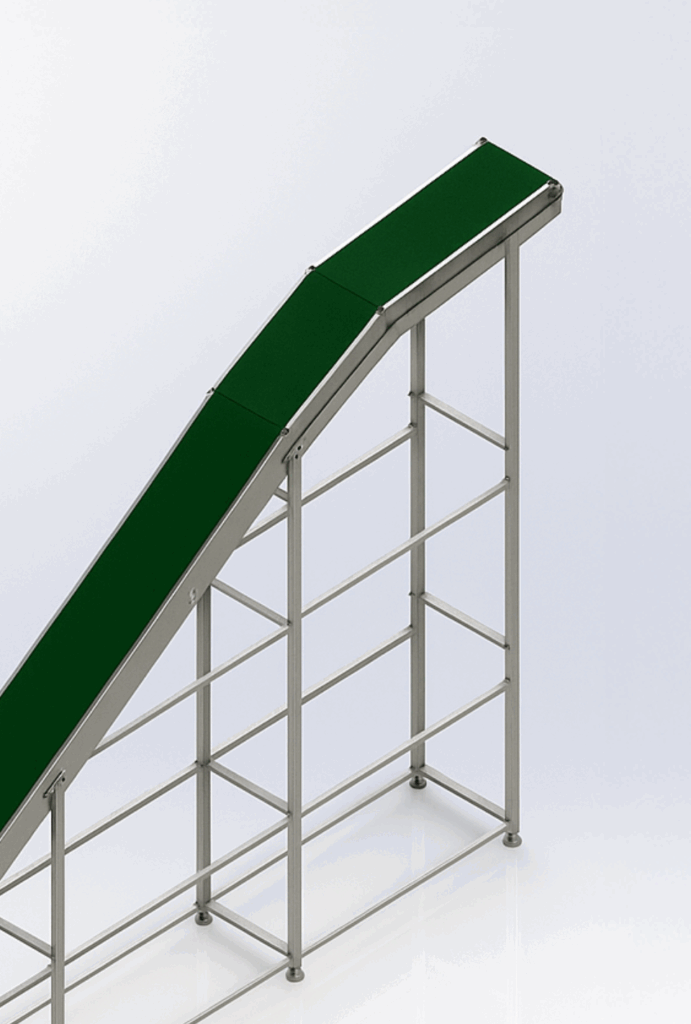

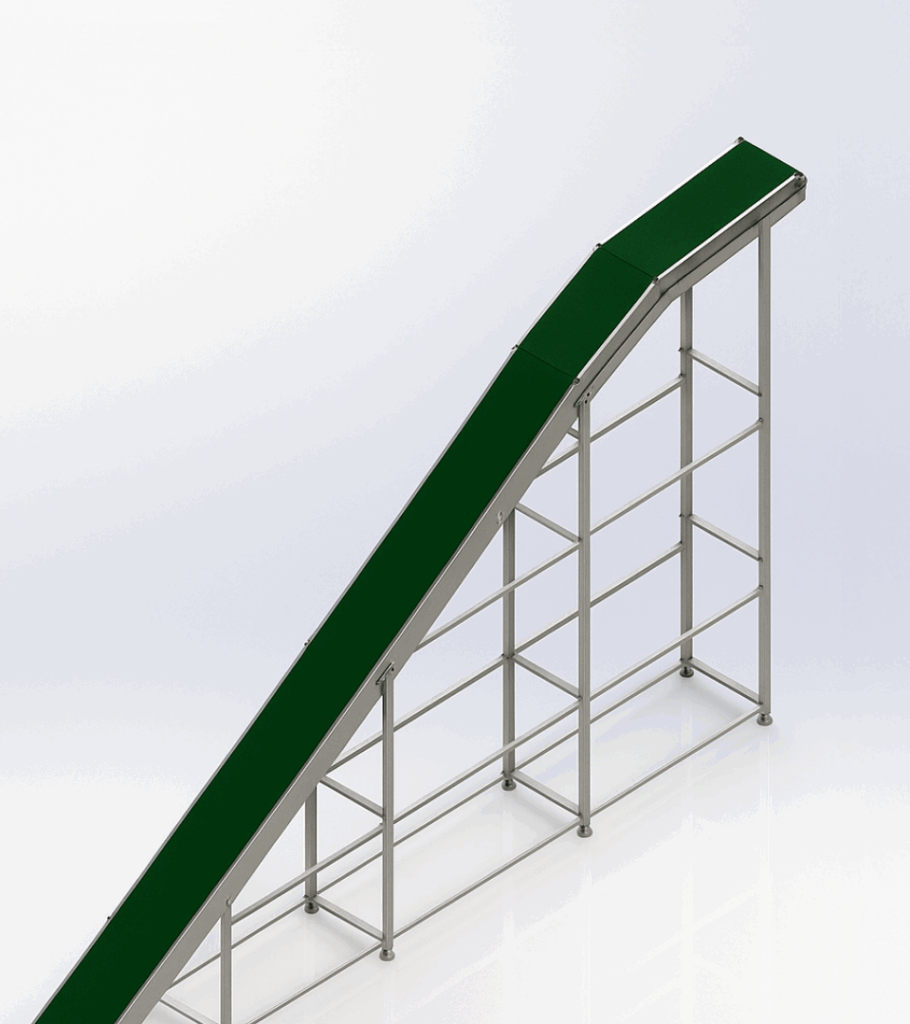

INCLINED
FLAT BELT

Conveyor

enquire now
Inclined Belt Conveyors are designed to efficiently move materials between different heights in your facility. Ideal for transporting products to elevated workstations, mezzanines, or storage areas, these conveyors offer smooth and reliable operation with minimal product slippage. Built with robust materials and customizable incline angles, they handle a wide range of items—from small components to bulk materials—making them suitable for packaging, manufacturing, warehousing, and distribution applications. Optional cleats and side guards are available to enhance product stability during elevation.

APPLICATION

Inclined conveyors efficiently move products such as parts, grains, food items, or bulk materials between different heights. Features like cleats or sidewalls help prevent load slippage. This type of conveyor helps save space, improve workflow, and reduce manual handling.

Boxes Handling in Warehouses
Boxes Handling in Warehouses
Capping Bottles
Capping Bottles
Handling Food Grains
Handling Food Grains
Handling Personal Care Items
Handling Personal Care Items
Handling Sheet Metal Parts
Handling Sheet Metal Parts
Handling Vaccine Bottles
Handling Vaccine Bottles
Moving Blister Packs
Moving Blister Packs
Moving Bottles
Moving Bottles
Moving Nuts and Snacks
Moving Nuts and Snacks
Moving Tablets Capsules
Moving Tablets Capsules
Transporting Biscuits
Transporting Biscuits
Transporting Trays
Transporting Trays

SPECIFICATIONS

  • Length – Customized
  • Width – 65 – 1200mm
  • Height – Customized
  • Inclination – 7.50/150/300/450/Customized
  • MOC – SS 304 / MS / Aluminium
  • Surface Finish – For SS Matt Finish / Bead Blast, For MS Painting & Powder Coating
  • Belt – PVC, PU, Cleated, Rough-Top, Modular
  • Speed – 5-35 m/min
  • Motor Position – Right / Left / Center
  • Power Supply – Single Phase / 3 Phase, 50 Hz
  • Voltage – 220V / 415V
  • Drive Type – Direct / Chain / Belt Drive
  • Direction – Bi-Directional
  • Resting – Levelling Pads / Wheel

FEATURES

• Allows material movement from lower to higher elevation

• Prevents spillage or product fall-off during conveyance

• Designed for tight spaces or where vertical lift is needed over a short distance

• Smooth transfer of items onto or off the conveyor at steep angles

BENEFITS

  • Inclined design uses vertical space effectively
  • Reduces Manual Labor & Ergonomic Risk
  • Increased Throughput & Productivity
  • Adjustable incline angles, belt types (e.g., cleated, rough-top, modular plastic) to match specific applications
