Inclined Modular

Conveyor

enquire now

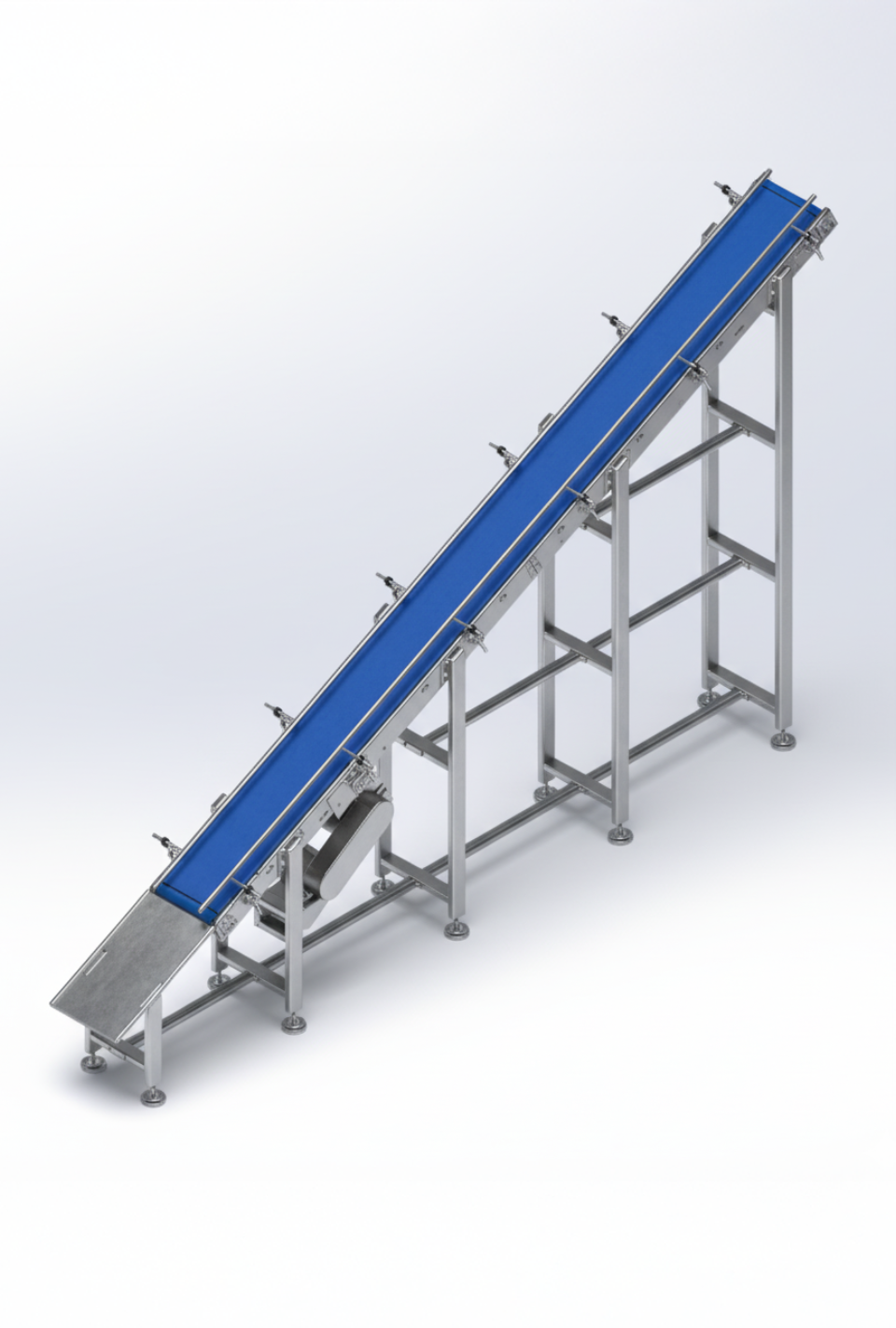

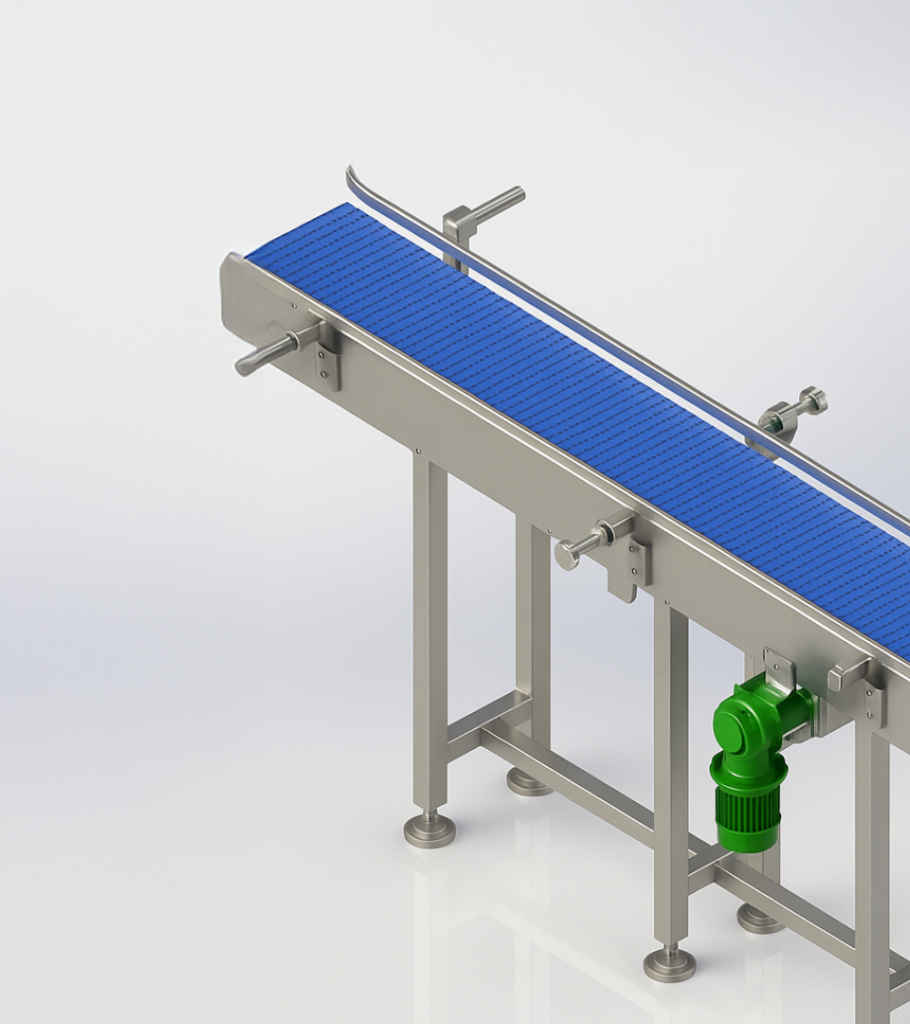

The Inclined Modular Conveyor is designed to transport products between different heights within a processing or packaging line. Its modular plastic belt offers strong grip, durability, and easy maintenance. The incline design optimizes vertical space while maintaining steady product flow. Perfect for elevating boxes, pouches, or cartons between ground level and upper stations.

APPLICATION

Lifting boxes, pouches, or cartons from ground level to a higher stage in the packaging line.

Boxes Handling in Warehouses
Boxes Handling in Warehouses
Capping Bottles
Capping Bottles
Handling Food Grains
Handling Food Grains
Handling Personal Care Items
Handling Personal Care Items
Handling Sheet Metal Parts
Handling Sheet Metal Parts
Handling Vaccine Bottles
Handling Vaccine Bottles
Moving Blister Packs
Moving Blister Packs
Moving Bottles
Moving Bottles
Moving Nuts and Snacks
Moving Nuts and Snacks
Moving Tablets Capsules
Moving Tablets Capsules
Transporting Biscuits
Transporting Biscuits
Transporting Trays
Transporting Trays

SPECIFICATIONS

  • Length – 0.5–10 Mtr / Customized
  • Width – 65–1200 mm
  • Height – 700–900 mm / Customized
  • Inclination – 7.5°, 15°, 30°, 45°, 60°, Customized
  • MOC – SS 304 / MS / Aluminium
  • Surface Finish – SS Matt Finish / Bead Blast; MS Painting & Powder Coating
  • Belt – Flat top, perforated, cleated, friction top, radius/curved
  • Speed – 5–30 m/min
  • Motor Position – Right / Left / Center
  • Voltage – 220 V / 415 V
  • Drive Type – Direct / Chain / Belt Drive
  • Direction – Bi-Directional
  • Resting – Levelling Pads / Wheel

FEATURES

• Modular, interlocking design

• Easy to replace sections

• Configurable for curves, inclines, declines

• Auto belt alignment with sprocket engagement

BENEFITS

  • Smooth vertical transfer
  • Space saving
  • Hygienic & durable
  • Low maintenance
  • Suitable for multiple product types
