MEDICAL BANDAGES AND PATCHES MACHINE

enquire now

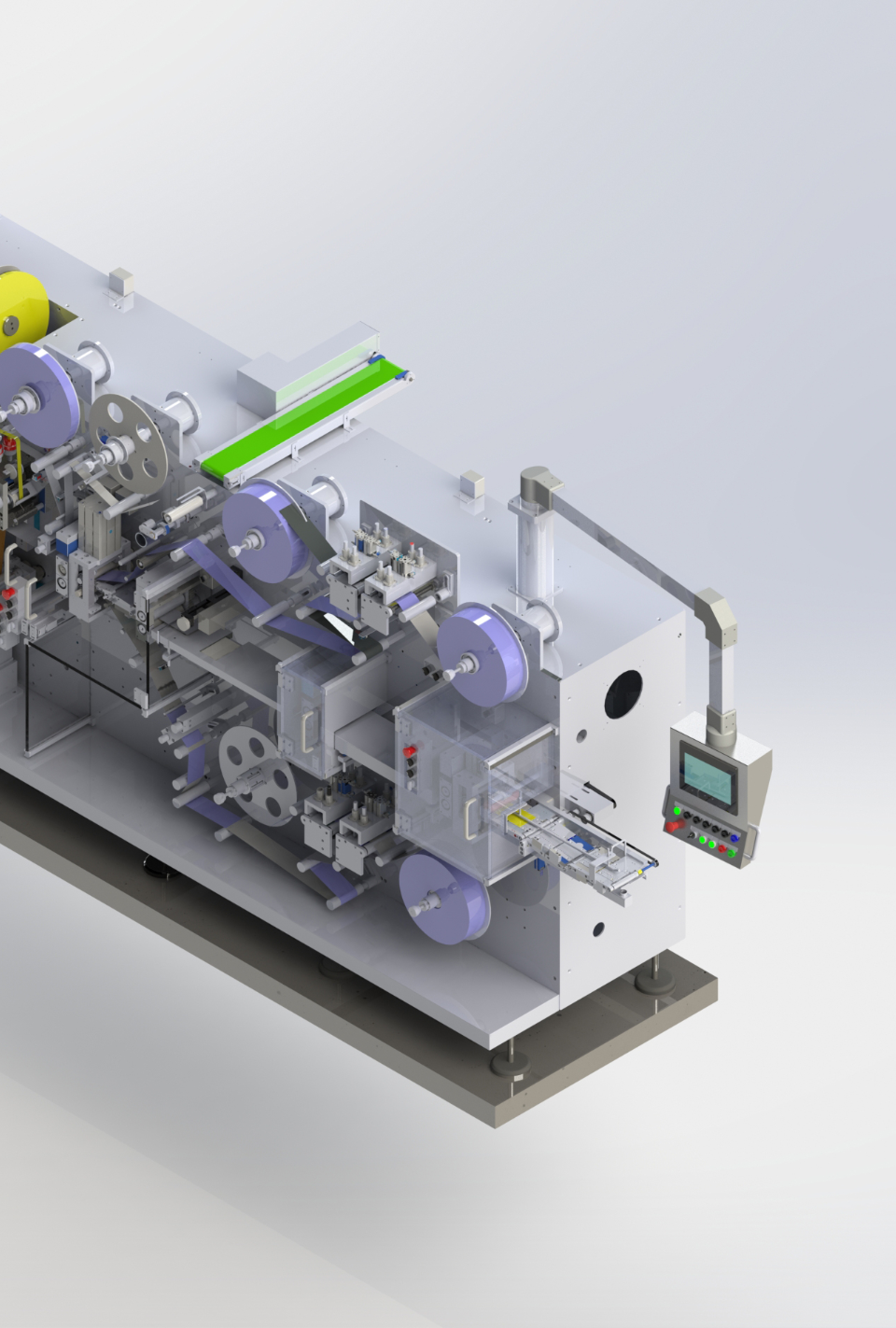

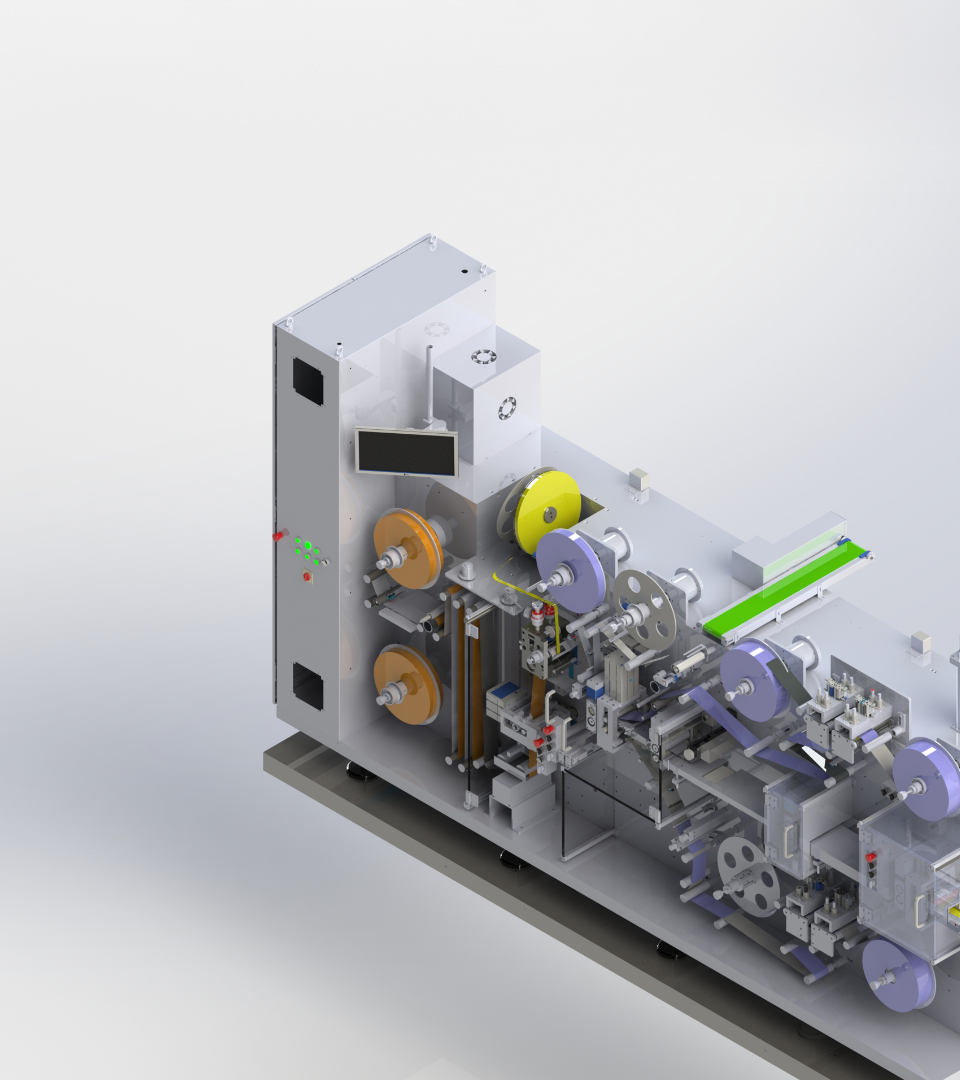

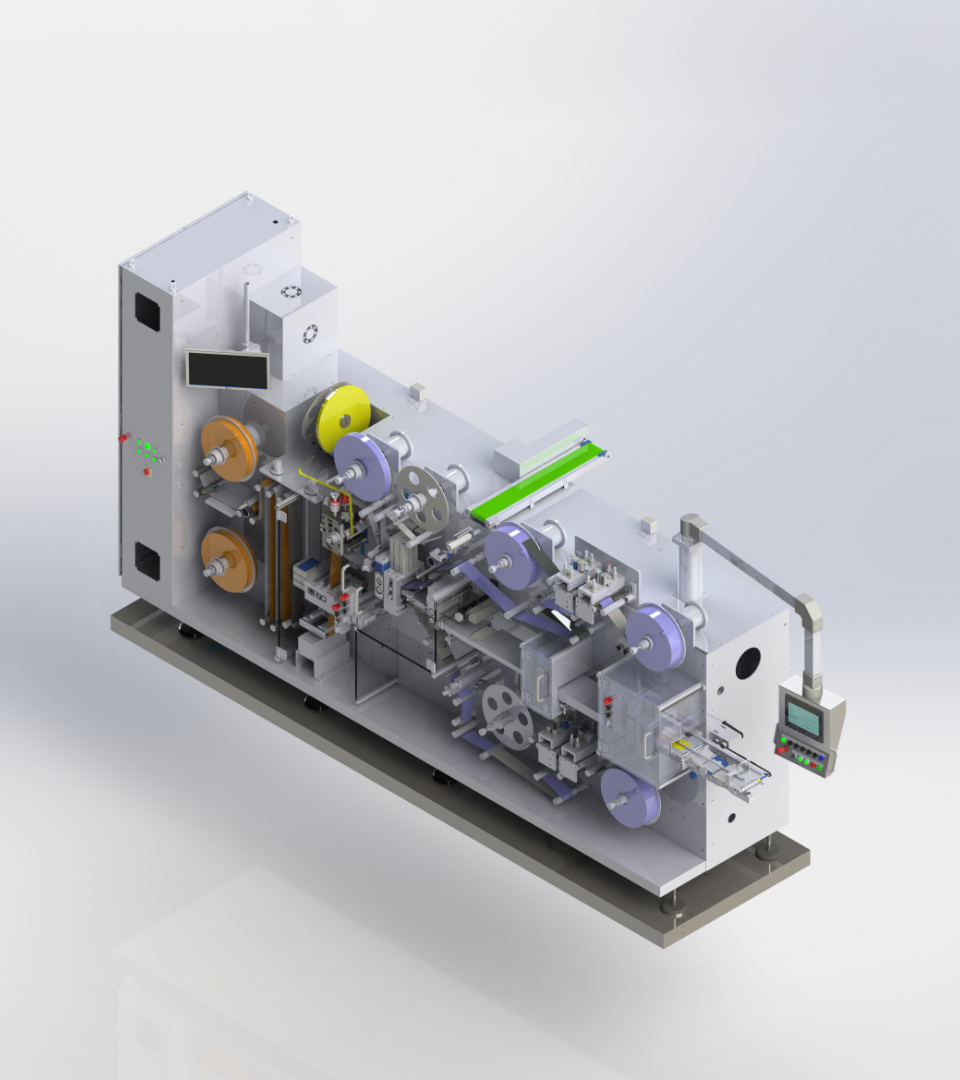

A Medical Bandage and Patches Machine is an automated device designed to produce medical bandages with precision, efficiency, and hygiene. Depending on the model, it may perform multiple operations such as fabric unwinding, cutting, folding, edge sealing, rolling, and packaging of bandages in various sizes and materials.

APPLICATION

Produces sterile surgical and medical bandages.

These machines are essential in medical supply manufacturing and ensure consistent quality,

reduce manual labor, and maintain compliance with healthcare standards.

Boxes Handling in Warehouses
Boxes Handling in Warehouses
Capping Bottles
Capping Bottles
Handling Food Grains
Handling Food Grains
Handling Personal Care Items
Handling Personal Care Items
Handling Sheet Metal Parts
Handling Sheet Metal Parts
Handling Vaccine Bottles
Handling Vaccine Bottles
Moving Blister Packs
Moving Blister Packs
Moving Bottles
Moving Bottles
Moving Nuts and Snacks
Moving Nuts and Snacks
Moving Tablets Capsules
Moving Tablets Capsules
Transporting Biscuits
Transporting Biscuits
Transporting Trays
Transporting Trays

SPECIFICATIONS

  • Design – Customized
  • Type – Fully Automatic with Servo driven
  • MOC – SS 304 / MS
  • Surface Finish – Matt Finish / Bead Blast For MS Painting & Powder Coating
  • Product – First Aid Bandages / Patches
  • Max. Roll Diameter – 150-450mm
  • Machine Speed – 1200 – 1600 Strip / min
  • Power Supply – Single Phase / 3 Phase, 50 Hz
  • Voltage – 220V / 415V
  • Direction – Single Direction
  • Resting – Anti Vibration Pad
  • Additional Features – Bar Code / QR Code Printing, Vision System

FEATURES

• Adjustable production speed.

• Easy Cutting & Rolling.

• Auto stop if the bandage breaks or rolls finish.

• Hygienic and easy to clean.

• Easy to operate and maintain.

• Barcode, QR Code Printing.

• Vision System.

BENEFITS

  • Produces bandages faster than manual methods.
  • Cuts and rolls bandages uniformly every time.
  • Increases productivity and lowers production costs.
  • Simple controls and low maintenance.
  • Saves space in production area.
