Radius Modular

Conveyor

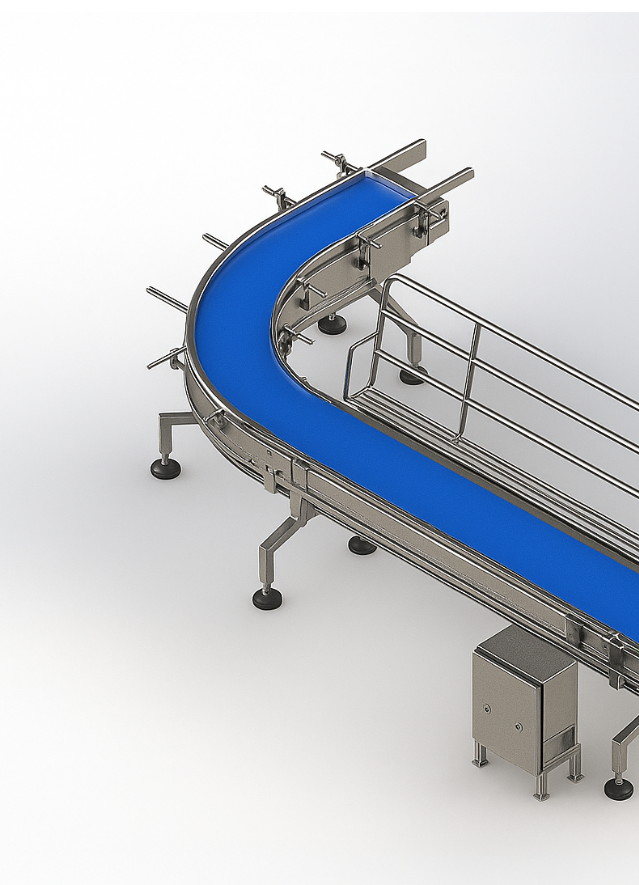

The Radius Modular Conveyor is a curved conveying system designed to transport products smoothly around corners or obstacles within a production line. It uses an interlocking modular plastic belt that maintains product orientation and stability while navigating curves. Ideal for directional changes without compromising efficiency or hygiene, it’s widely used in food processing, packaging, and manufacturing environments.

APPLICATION

Moving medicines, bottles, or blister packs through cleanroom conditions; curved transport of cartons, pouches, or trays between machines.

Boxes Handling in Warehouses

Capping Bottles

Handling Food Grains

Handling Personal Care Items

Handling Sheet Metal Parts

Handling Vaccine Bottles

Moving Blister Packs

Moving Bottles

Moving Nuts and Snacks

Moving Tablets Capsules

Transporting Biscuits

Transporting Trays

SPECIFICATIONS

Length – 0.5–10 Mtr / Customized
Width – 65–1200 mm
Height – 700–900 mm / Customized
MOC – SS 304 / MS / Aluminium
Surface Finish – SS Matt Finish / Bead Blast; MS Painting & Powder Coating
Belt – Flat top, perforated, cleated, friction top, radius/curved
Speed – 5–30 m/min
Motor Position – Right / Left / Center
Voltage – 220 V / 415 V
Drive Type – Direct / Chain / Belt Drive
Direction – Bi-Directional
Resting – Levelling Pads / Wheel

FEATURES

• Modular, interlocking design

• Easy to replace sections

• Configurable for curves, inclines, declines

• Auto belt alignment with sprocket engagement

BENEFITS

Continuous movement through turns (45°, 90°, 180°)
Long service life
Hygienic & easy to clean
Minimal slippage & alignment issues
Lightweight structure
