Radius Power Roller

Conveyor

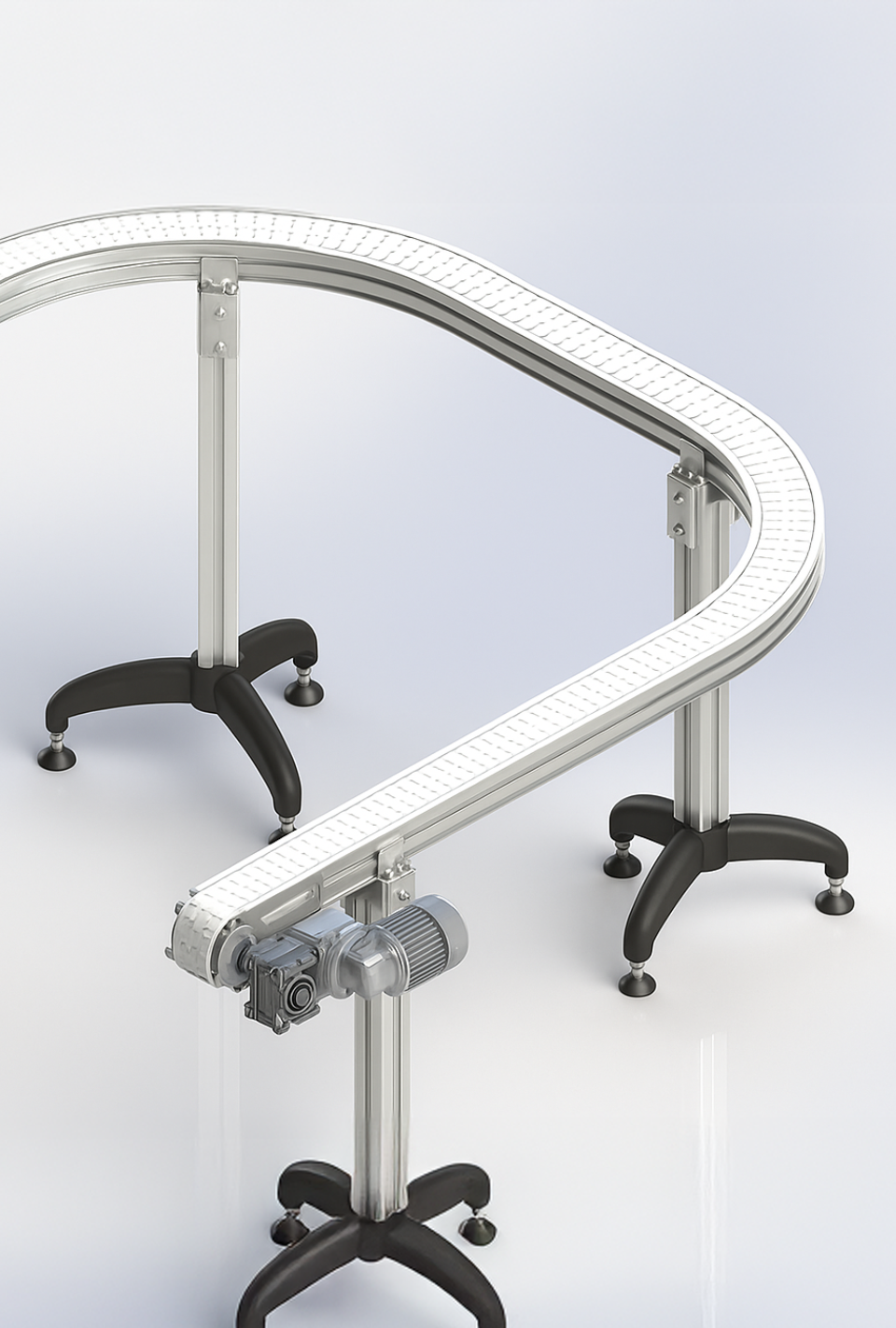

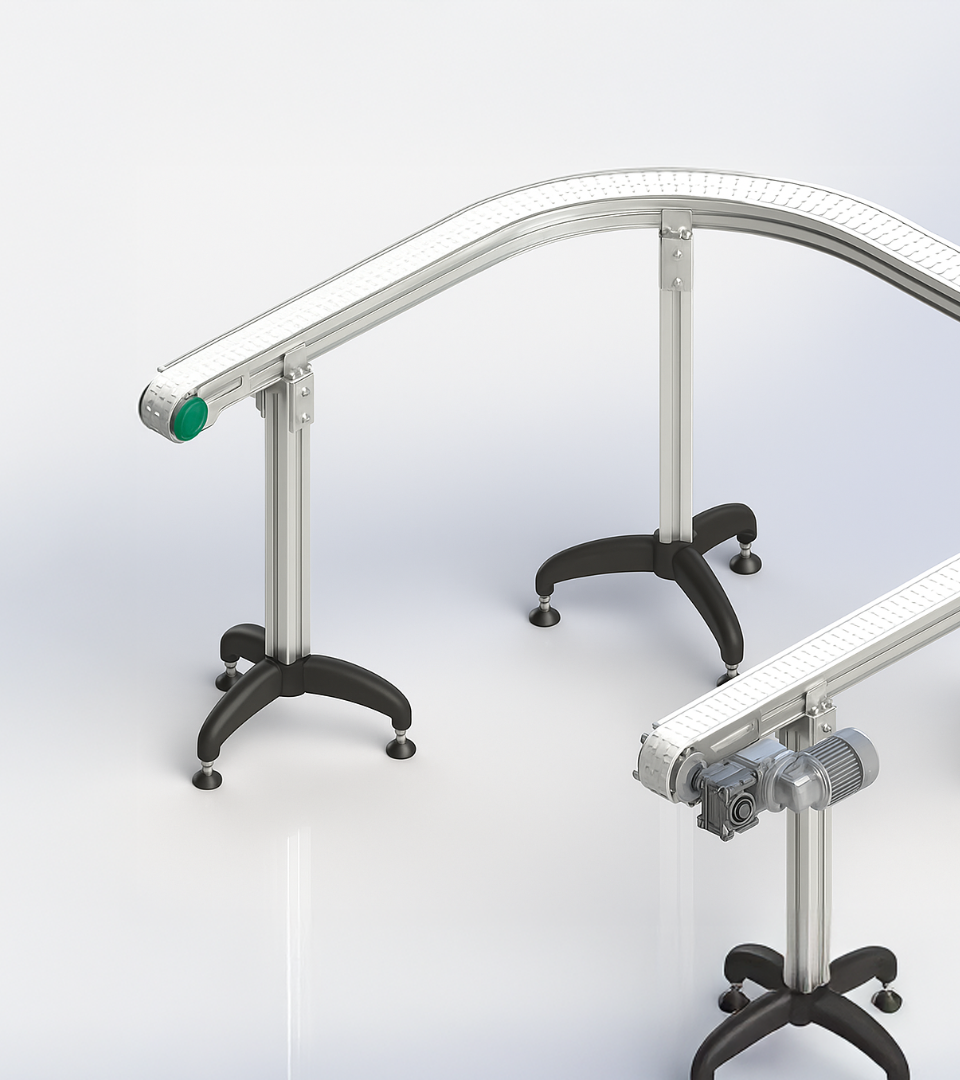

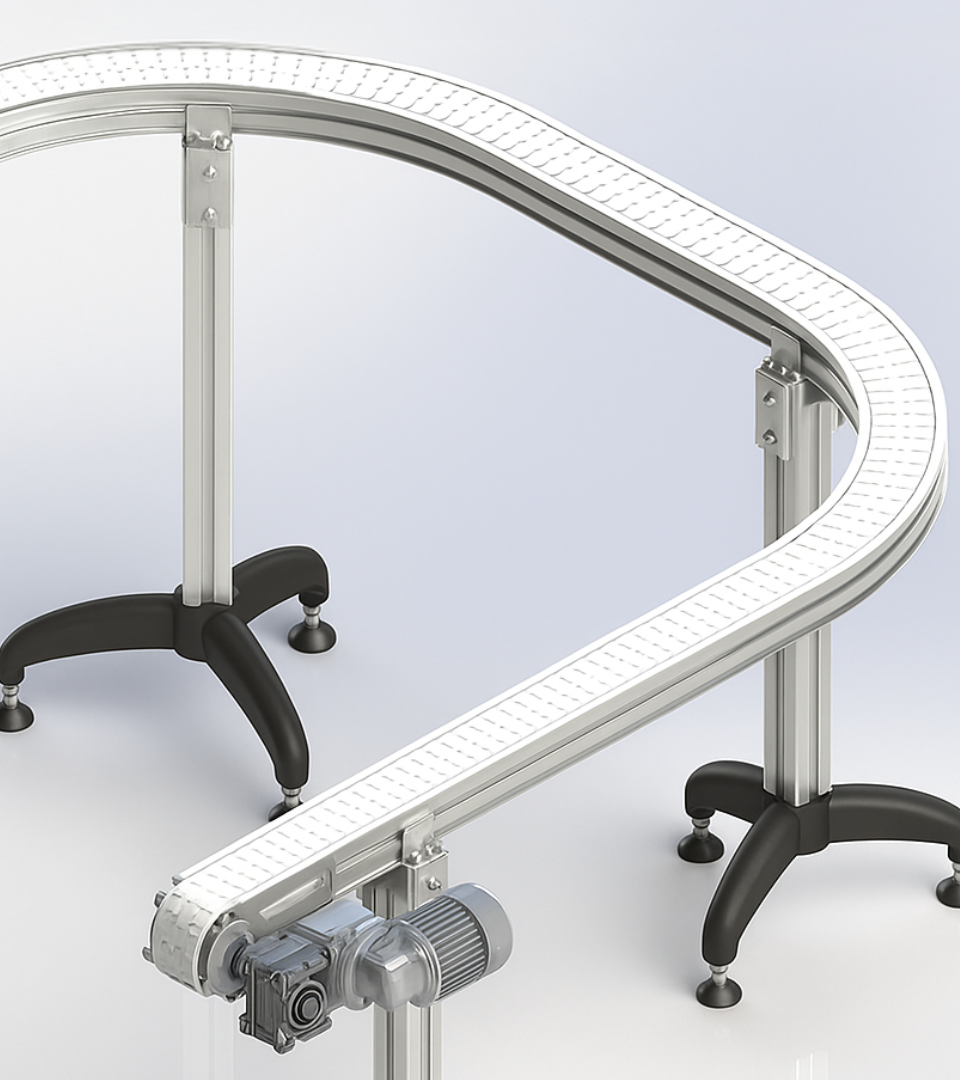

A motor-driven curved conveyor system designed for efficient product movement through directional changes. Powered rollers maintain steady flow around corners, ideal for cartons, totes, or trays in automated lines.

APPLICATION

Moving boxes or packaged goods along curved paths in distribution and packaging facilities.

Boxes Handling in Warehouses

Capping Bottles

Handling Food Grains

Handling Personal Care Items

Handling Sheet Metal Parts

Handling Vaccine Bottles

Moving Blister Packs

Moving Bottles

Moving Nuts and Snacks

Moving Tablets Capsules

Transporting Biscuits

Transporting Trays

SPECIFICATIONS

Radius – R500/R700/R1000/R1500 / Customized
Width – 300–1000 mm
Height – 700–900 mm / Customized
MOC – SS 304 / MS
Surface Finish – SS Matt Finish / Bead Blast; MS Painting & Powder Coating
Speed – 3–20 m/min
Roller Type – Tapered/Sprocket Driven/Grooved
Roller Diameter – 38–60 mm
Motor Position – Right / Left / Center
Voltage – 220 V / 415 V
Drive Type – Direct / Chain / Belt
Direction – Bi-Directional
Resting – Levelling Pads / Wheel

FEATURES

• Smooth curved product flow

• Powered for consistent movement

• Durable, low-maintenance design

BENEFITS

Increased efficiency
Reduced labor
Variable speed control
Space-efficient layout
