ROTARY CAP FEEDER

enquire now

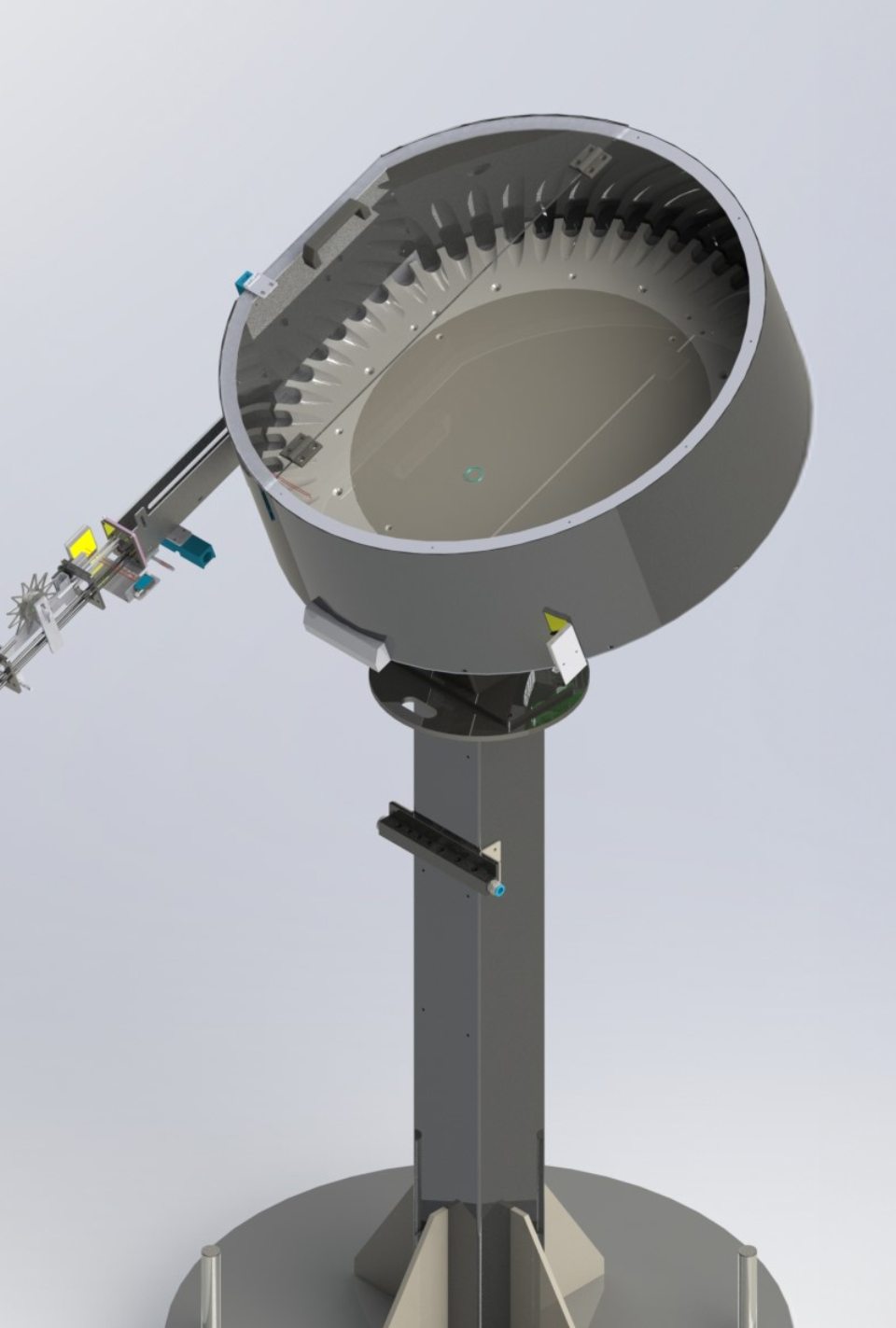

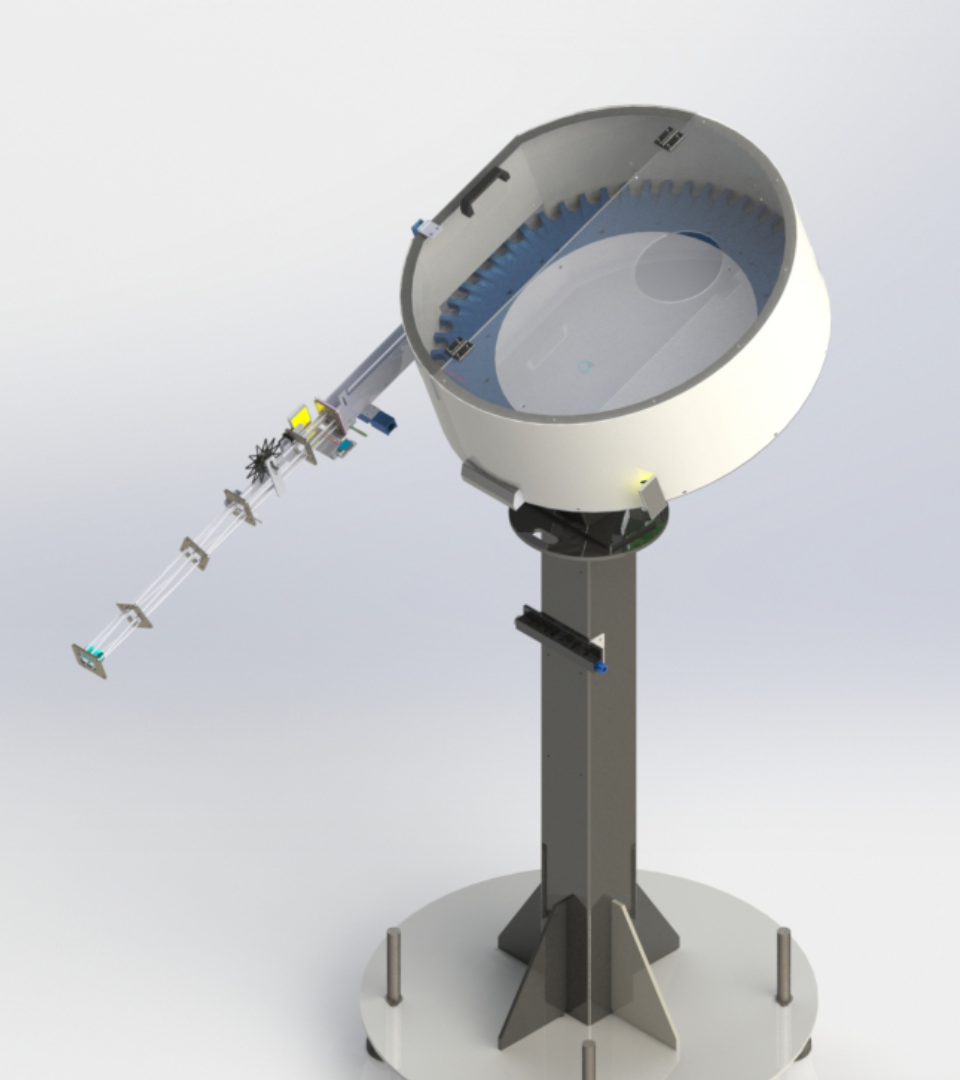

A Rotary Cap Feeder is an automated device designed to efficiently sor t , orient , and feed bottle caps into a capping machine. Using centrifugal or rotary motion, it separates and aligns caps uniformly before delivering them to the cap chute or pick-up point , ensuring smooth and continuous operation of the capping line. and consumer safety.

APPLICATION

Efficiently supplies caps for bottles, jars, and containers used for water, juices, sauces, and dairy products.

Used for feeding and orienting bottle caps, flip-off caps, and closures in tablet , syrup,and injection bottle packaging  lines.

Boxes Handling in Warehouses
Boxes Handling in Warehouses
Capping Bottles
Capping Bottles
Handling Food Grains
Handling Food Grains
Handling Personal Care Items
Handling Personal Care Items
Handling Sheet Metal Parts
Handling Sheet Metal Parts
Handling Vaccine Bottles
Handling Vaccine Bottles
Moving Blister Packs
Moving Blister Packs
Moving Bottles
Moving Bottles
Moving Nuts and Snacks
Moving Nuts and Snacks
Moving Tablets Capsules
Moving Tablets Capsules
Transporting Biscuits
Transporting Biscuits
Transporting Trays
Transporting Trays

SPECIFICATIONS

  • Design – Customized
  • Cap Type – Nip Cap, Closures, Screw, Snap-fit, CRC, and Special Type Caps
  • Feeding Speed – 60-700 caps / min
  • Feeder Diameter – 600-1500mm
  • MOC – SS 304 / MS
  • Surface Finish – Matt Finish / Mirror Finish / For MS Painting & Powder Coating
  • Power Supply – Single Phase / 3 Phase, 50 Hz
  • Voltage – 220V / 415V
  • Drive Type – Direct
  • Direction – Single Direction / Cap orientation
  • Resting – Anti Vibration Pad
  • Air Pressure – 6bar (90psi)
  • Panel – Electrical / Pneumatic

FEATURES

• Compact and Robust Design

• High Feeding Accuracy

• Integrated with Capping Line

• Quick Changeover

• Hopper Level Sensing

BENEFITS

  • Provides continuous and consistent cap supply, reducing manual handling.
  • Precisely orients and delivers caps in the correct position to the capping machine.
  • Optional sensor to monitor and maintain cap levels automatically.
  • Tool-less design allows easy and fast changeover between different cap sizes.
