Slat Chain Conveyor Manufacturer | Sai Samarth Engineering

Slat Chain

Conveyor

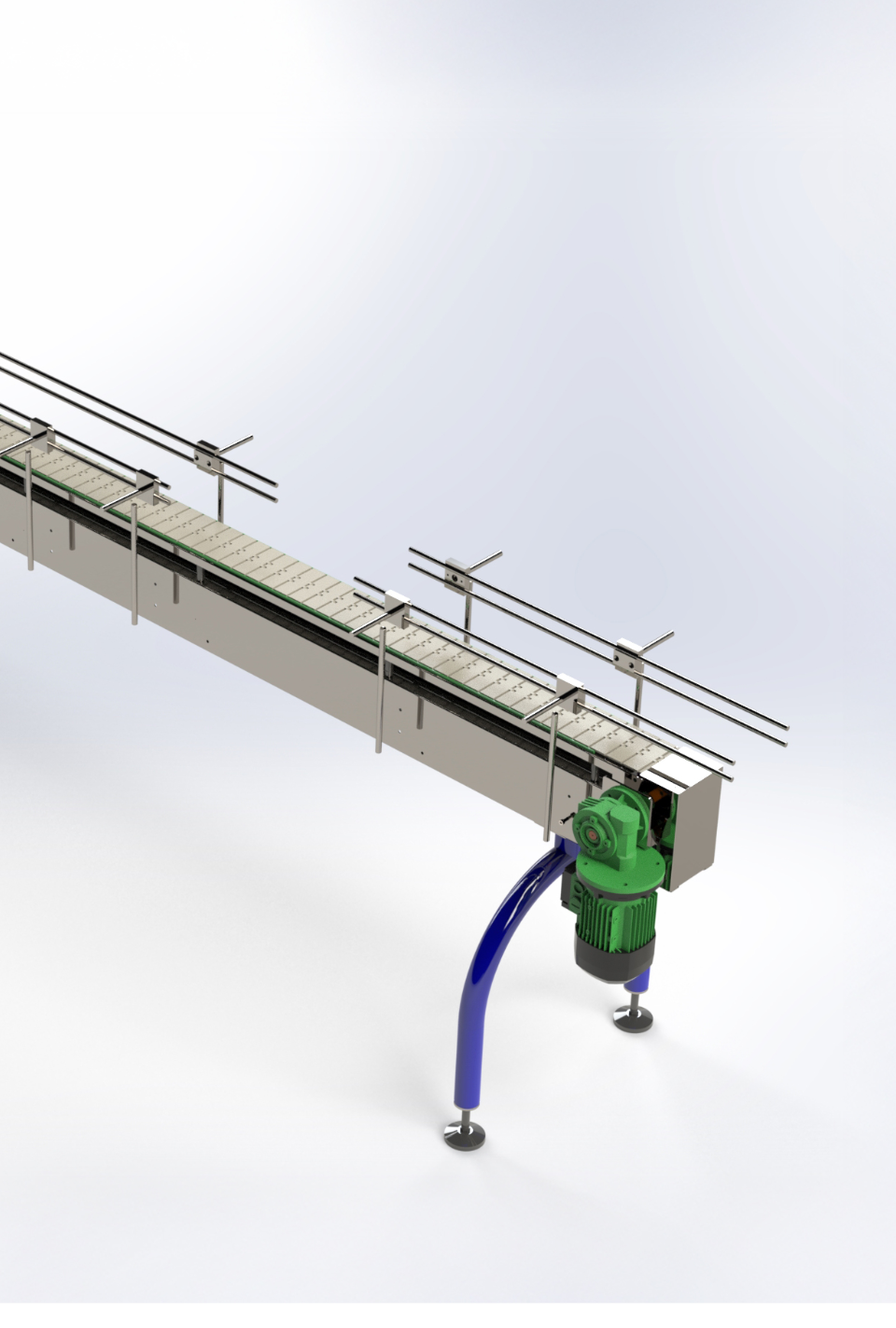

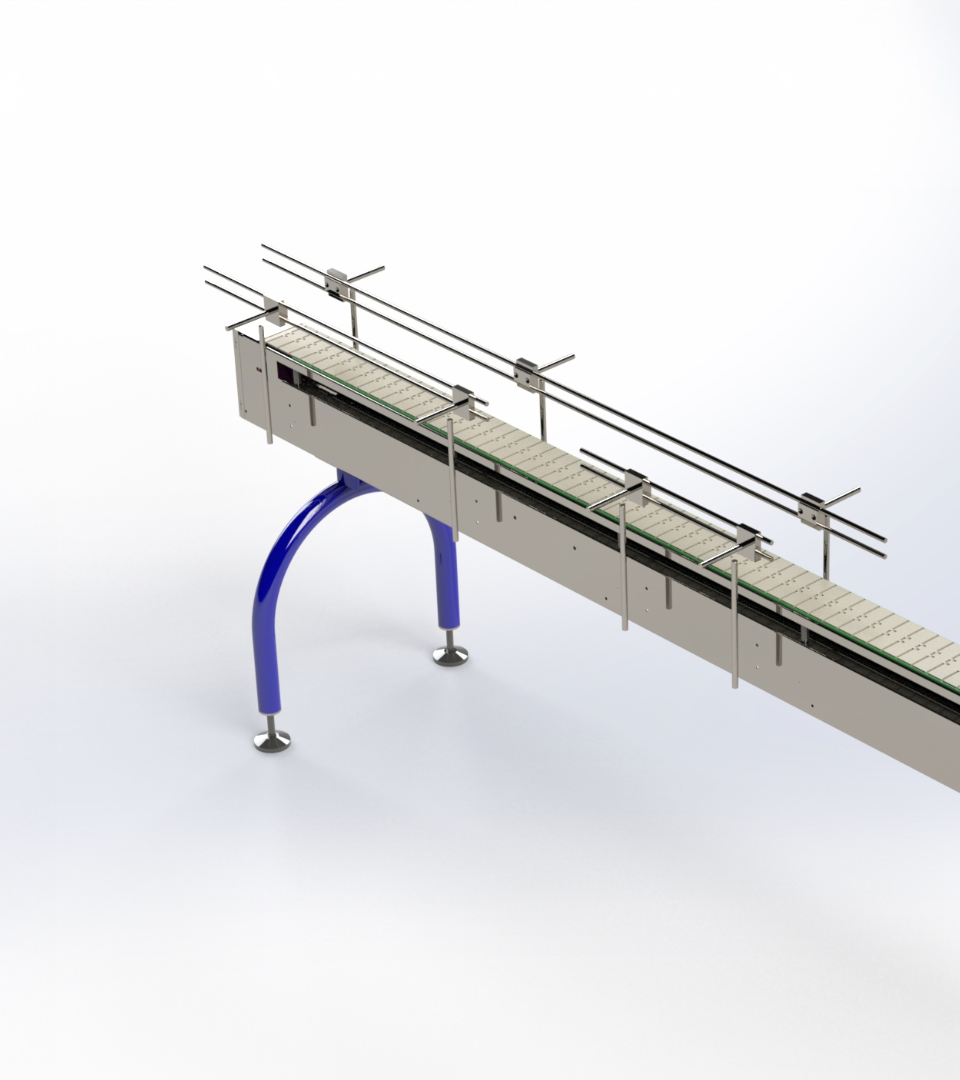

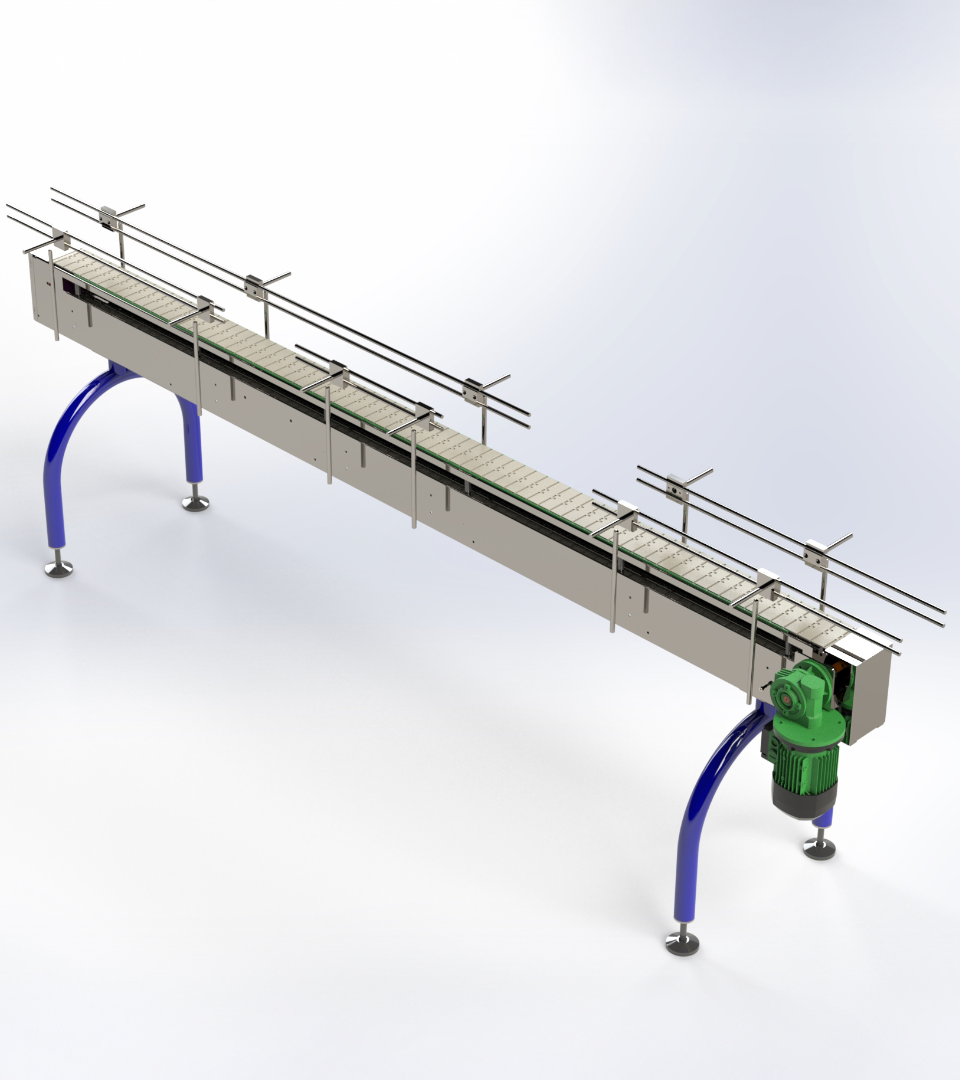

The Slat Chain Conveyor is a robust and versatile system using slats—made of stainless steel, plastic, or other durable materials—mounted on a chain-driven system. It’s ideal for moving heavy, irregular, or high-temperature products, with flat, stable surfaces for safe transport. Common in food, beverage, pharma, and automotive industries.

APPLICATION

Moving glass or plastic bottles through washing, filling, capping, and labeling machines; conveying bottles, vials, or cartons through inspection or labeling stations.

Boxes Handling in Warehouses

Capping Bottles

Handling Food Grains

Handling Personal Care Items

Handling Sheet Metal Parts

Handling Vaccine Bottles

Moving Blister Packs

Moving Bottles

Moving Nuts and Snacks

Moving Tablets Capsules

Transporting Biscuits

Transporting Trays

SPECIFICATIONS

Length – 1–10 Mtr / Customized
Width – 65–300 mm
Height – 700–900 mm / Customized
MOC – SS 304 / MS / Aluminium
Surface Finish – SS Matt Finish / Bead Blast; MS Painting & Powder Coating
Belt – Slat Chain
Speed – 5–35 m/min
Motor Position – Right / Left
Voltage – 220 V / 415 V
Drive Type – Direct / Chain / Belt Drive
Direction – Single Direction
Resting – Levelling Pads / Wheel

FEATURES

• Modular chain design

• Custom width/shape

• Low slippage risk

• Supports automation

• Operates at high speeds

BENEFITS

Stable flat slats
Safe & even transport
Works in dry/wet environments
Consistent product speed
Increases throughput
