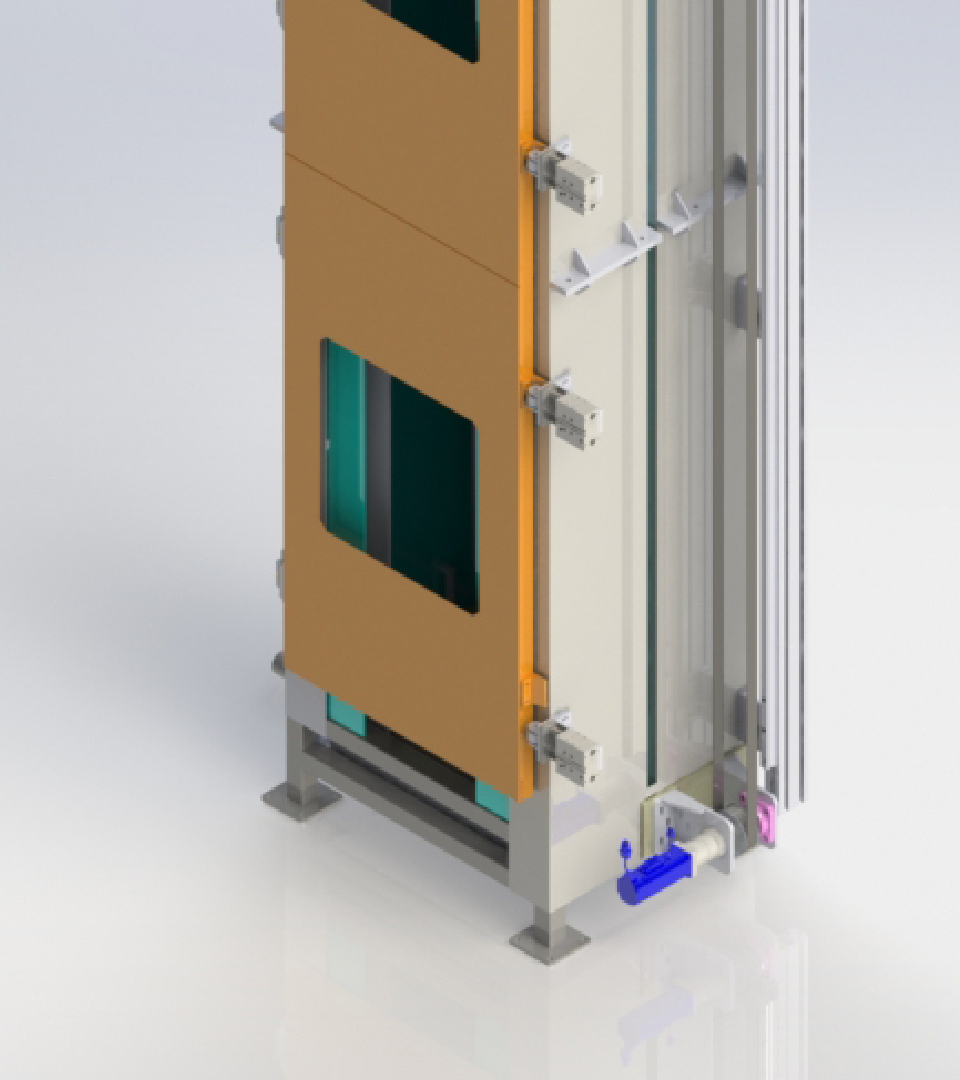

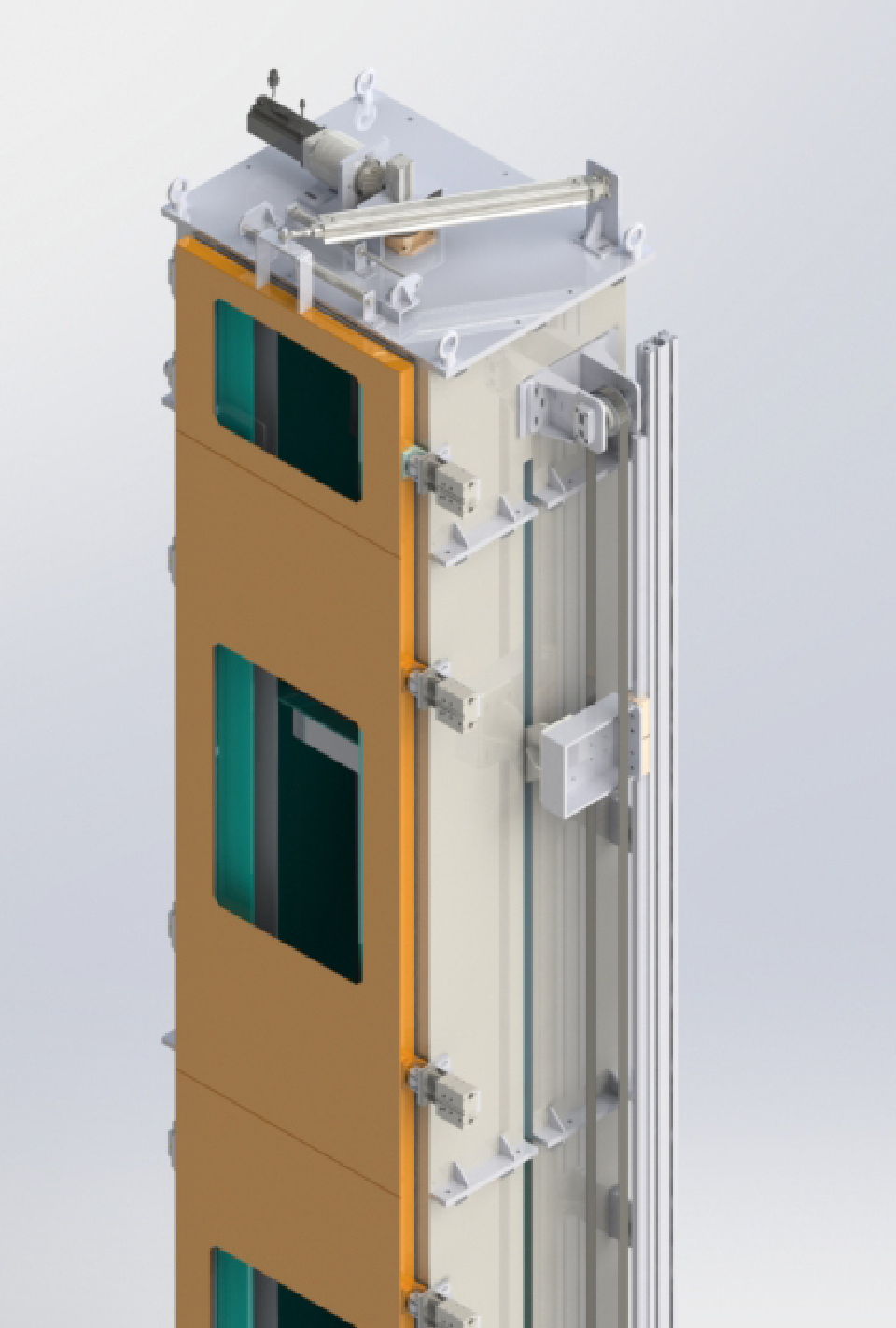

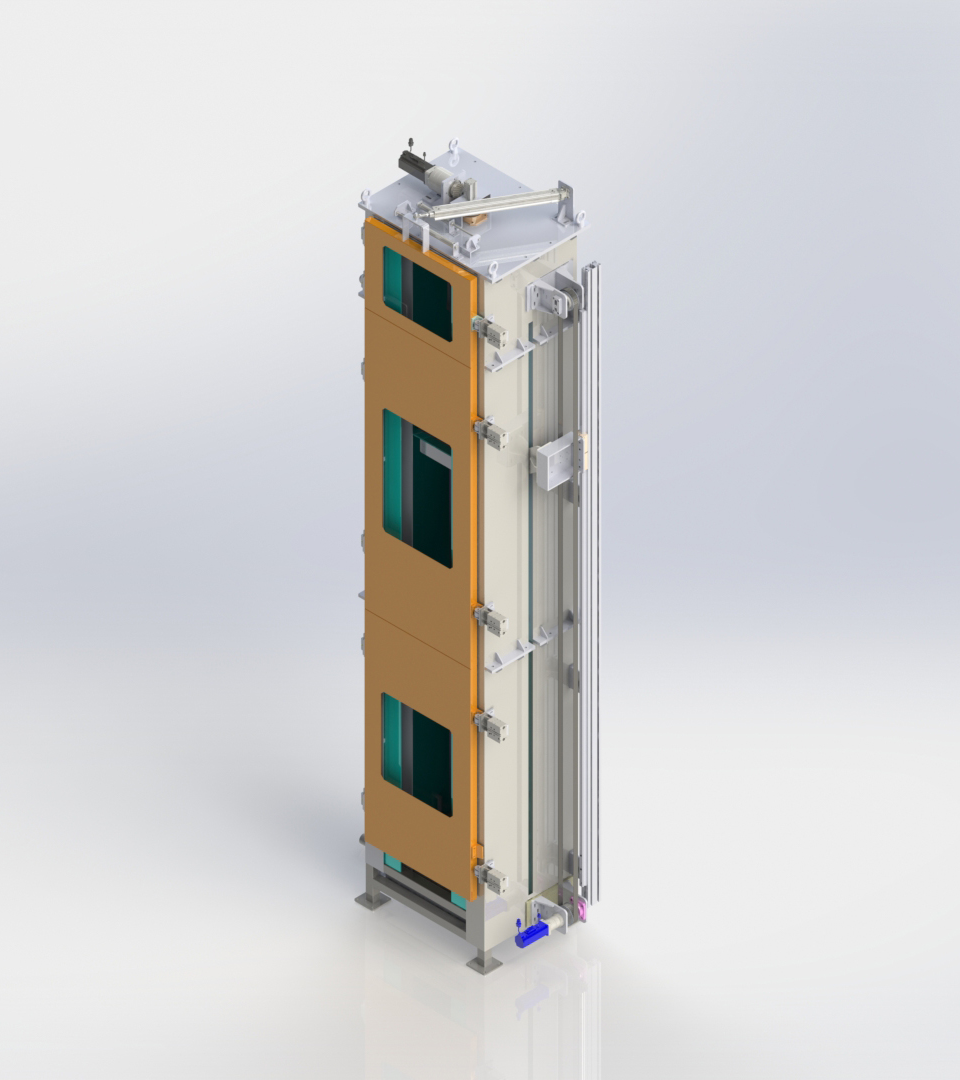

VERTICAL PREFORM WASHING SYSTEM

The Vertical Preform Washing System is an automated cleaning unit designed to remove dust , debris, and surface contaminants from Fibre glass preforms before they enter the furnace or filling process. This system ensures that preforms are clean and hygienic, reducing the risk of contamination in the final product and improving the efficiency and quality of downstream operations. The system typically includes a combination of air rinsing, water spraying nozzles, depending on the level of cleanliness required. Preforms are fed into the system via a conveyor or chute and

APPLICATION

Used to thoroughly clean glass preforms before applying coatings, printing, or labeling to ensure strong adhesion and defect-free surfaces.

SPECIFICATIONS

  • Design – Customized
  • Width – 1000 mm
  • Height – 3Mtr – 9.5Mtr / Customized
  • MOC – SS 304
  • Washing Type – High-pressure water / Air spray jet cleaning using nozzles / Nitrogen Wiping
  • Surface Finish – Matt Finish
  • Motor Position – Right / Left / Centre
  • Power Supply – Single Phase / 3 Phase, 50 Hz
  • Voltage – 220V / 415V
  • Motion – Vertical linear Slide with Servo Drive
  • Rotary – Holding device with Servo Drive
  • Air Pressure – 6bar

FEATURES

Multi-Stage Washing Process

High-Pressure Water , Air & Nitrogen Spray Nozzles

Rotary Mechanism

Vertical linear Slide

BENEFITS

  • Ensures preforms are completely clean, reducing contamination and improving downstream filling quality.
  • Multi-stage washing with precise controls.
  • Stainless steel construction and safety interlocks with pneumatic cylinder.
  • Closed washing and drying system limits exposure to airborne dust or debris.
